• Extended Wireless Range: Delivers reliable performance with up to 1,000 feet of wireless communication, ensuring seamless operation across large areas.
• Sleek, Compact Design: Engineered for unobtrusive integration, blending seamlessly into any pool environment.
• Effortless Installation: Designed for a simple retrofit installation, allowing for quick and hassle-free upgrades to your existing system.
• Customizable Fill Rate: Offers adjustable fill rate settings, providing precise control over water replenishment according to your needs.
• Automatic Water Level Management: Maintains your desired water level with precision, reducing the need for manual adjustments.
• Advanced Overfill Protection: Safeguards your pool with built-in overfill protection, preventing water waste and potential damage.
• Seamless Integration with Existing Plumbing: Utilizes your existing plumbing system, minimizing installation time and disruption.
• Smart Meter Compatibility: Fully compatible with AMI Smart meters, not interrupting existing radio signals.
• Frequent Water Level Monitoring: Conducts water level checks every 30 minutes, ensuring consistent and optimal water levels at all times.

The LevelSmart™ Sensor wakes up every 30 minutes to check the current water level of your pool, spa, water feature or tank and then wirelessly communicates the information to the Valve Controller. If the current water level is measured below the set level, the Valve Controller will then open the Valve for 7 minutes. The Valve Controller will turn off the Valve after 7 minutes as a failsafe against over-fill. Again, in 30 minutes, the Sensor will check the water level and, if needed, fill for 7 minutes. The Valve Controller will only open the Valve if the current water level is below the level set by the user during installation.The Valve is plumbed into the manual fill line, or it is "T'd" into the return lines, from a water source. The Valve Controller can then open and close the Valve to fill your pool as needed.

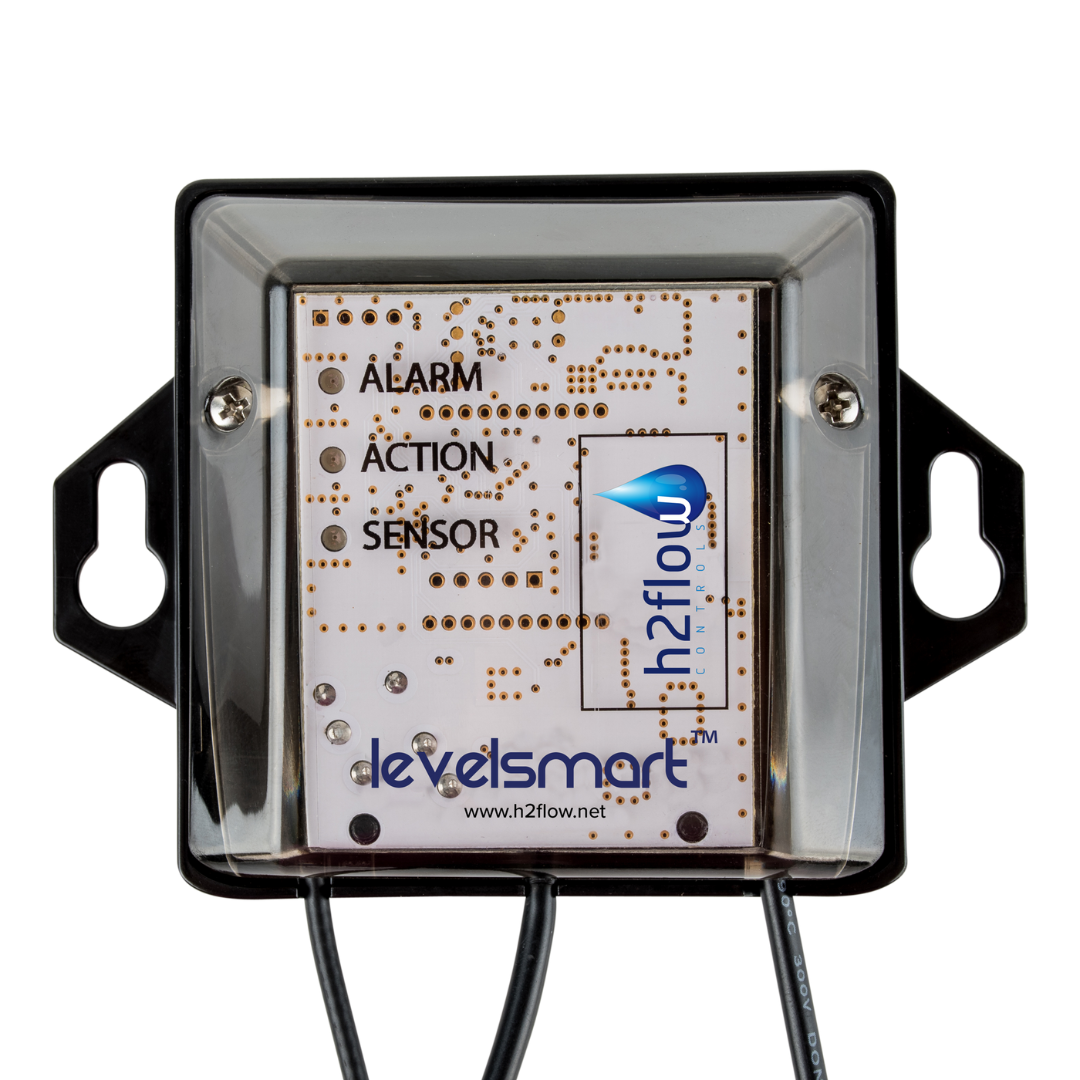

• LevelSmart™ Valve Controller

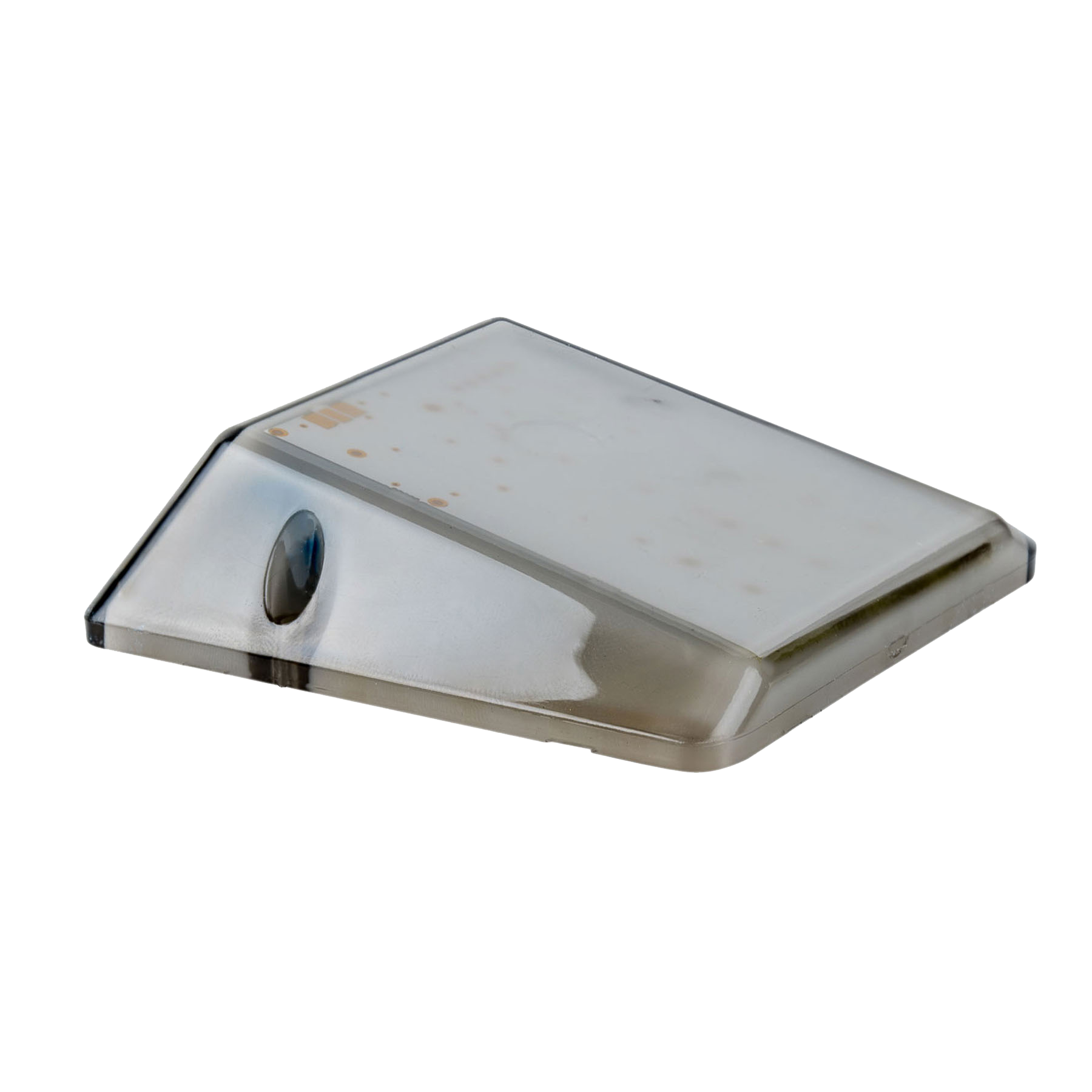

• LevelSmart™ Sensor

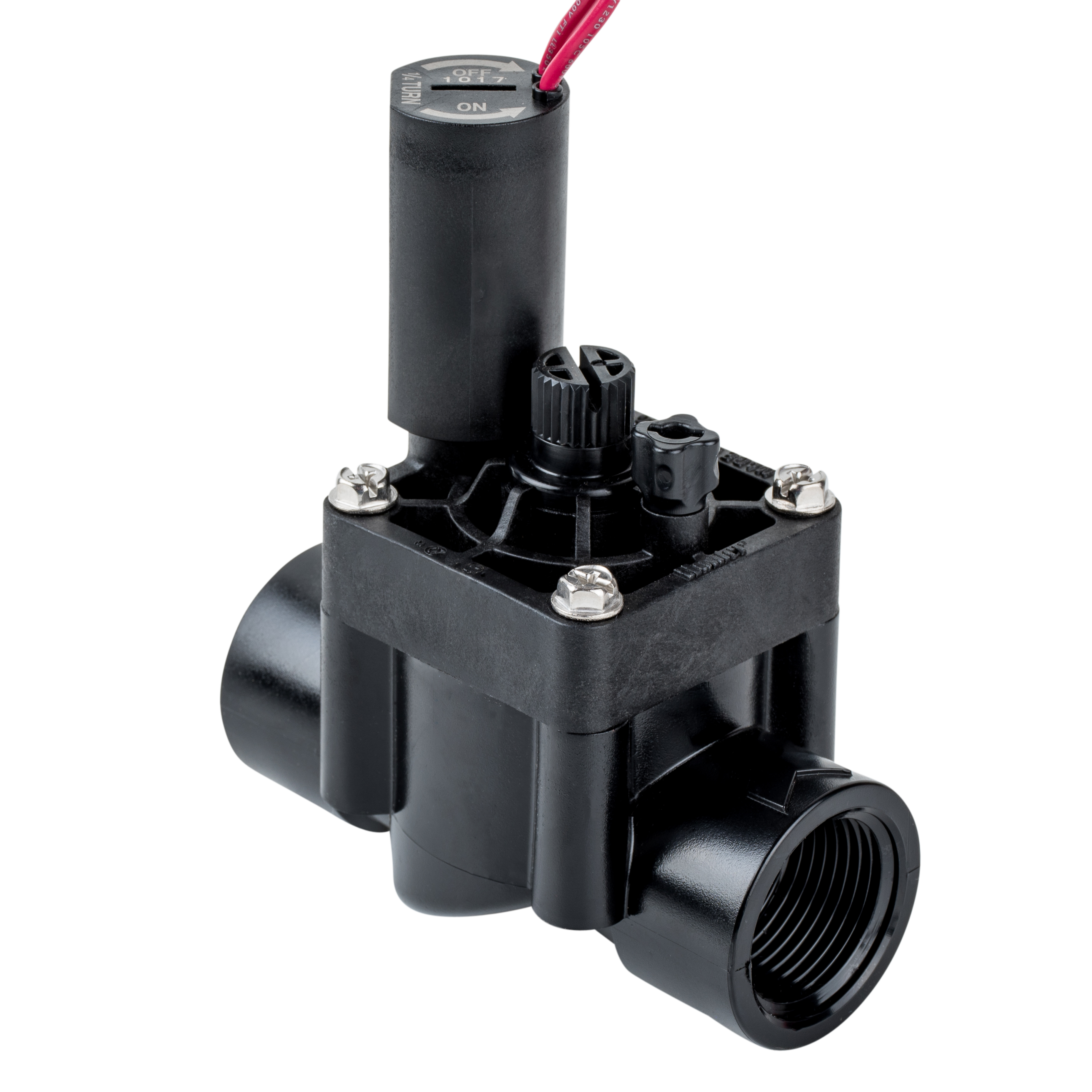

• 1" Hunter Valve

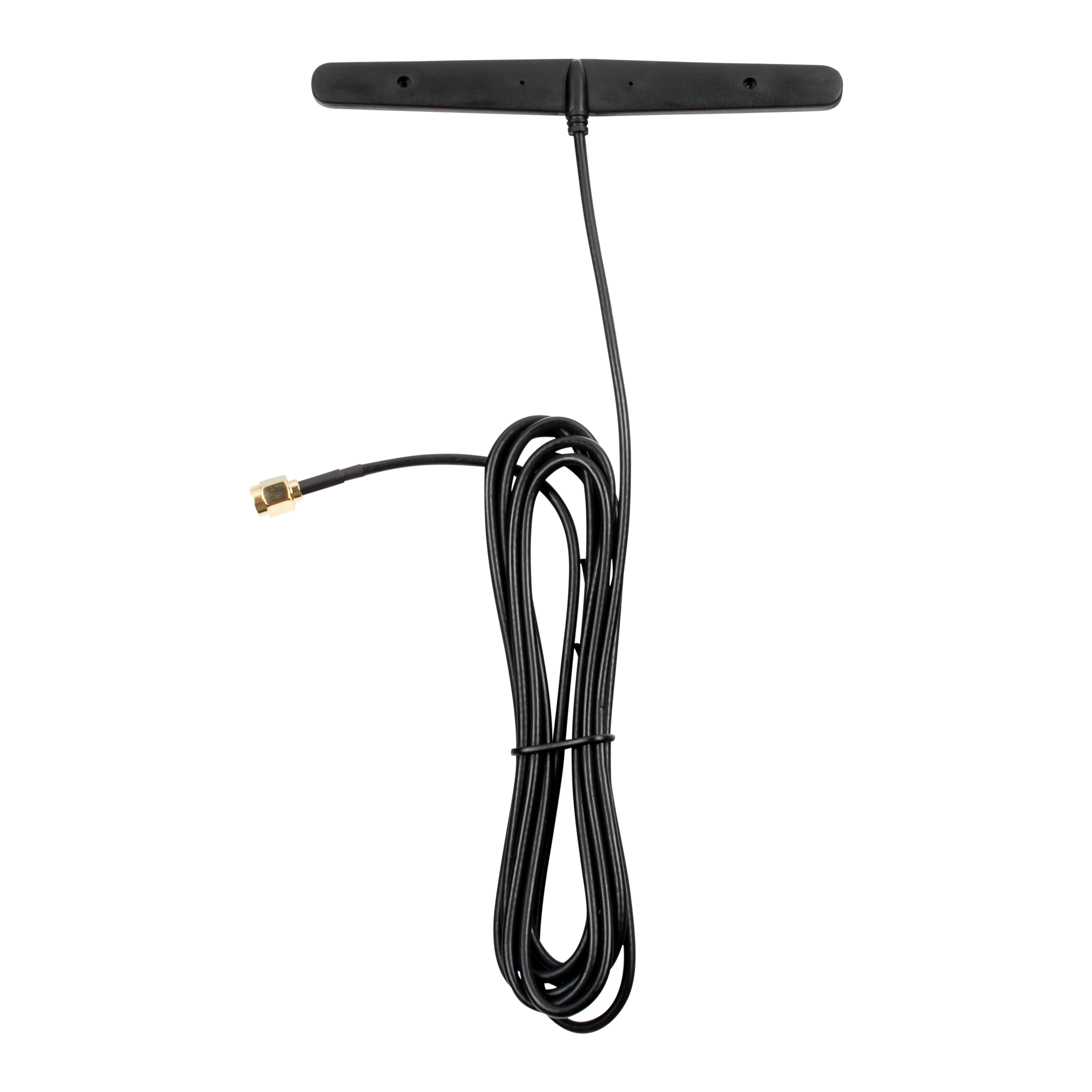

• Antenna Tip
• A/B Putty Adhesive
• Accessory pack

Instruction Manual

Quick Start Guide

Video Library

Yes, you can have many LevelSmart units within the same area and they will not affect one another. We use technology that allows each sensor to only communicate with the controller it is paired with. As long as you pair the units at different times there will be no issues. Most commonly customers use separate units for their pool, spa, and water features.

Yes, the Sensor is 100% wireless and discrete to be out of sight and out of mind. The sensor is wireless and waterproof, ensuring long-lasting communication and leveling.

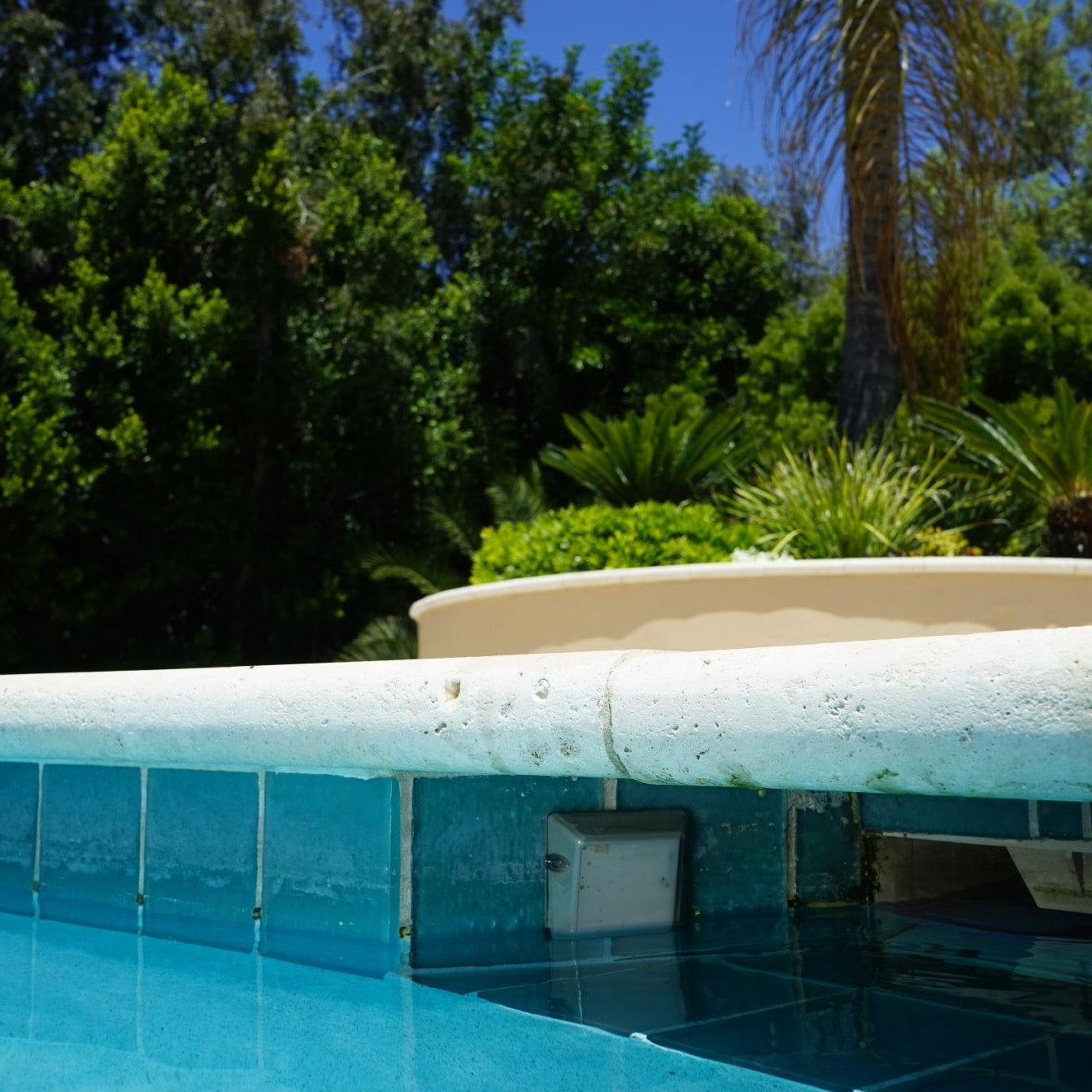

Yes. The sensor will live in the catch basin and there is no issue with the sensor being completely submerged. However, the sensor should not be installed near waterfall aspect of this type of pool.

The LevelSmart operates with a standard 110V 3 pin plug and a transformer that’s supplied in the kit and brings it down to 24V to power the controller and the valve.

The LevelSmart Sensor adheres to your pool with a marine grade A/B epoxy. When mounting your Sensor you will need to knead the epoxy to effectively mix the components and apply it to the back of the Sensor.
