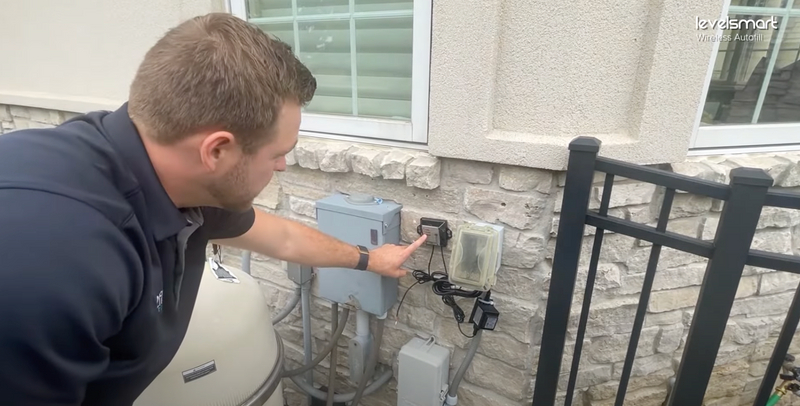

How to Check Valve Operation after LevelSmart Installation
After successfully pairing your LevelSmart, you can check the valve operation and connection. Be cautious not to hold the magnet on the Valve Controller for longer than 15 seconds, as it will reset the system and require you to repeat the pairing process. Place the magnet on the Valve Controller until the red and green LEDs illuminate, adjust for polarity if needed, then hold the magnet for five seconds and remove it. The Action LED will light up for five seconds, indicating the valve is open, and you'll hear the valve open and close, confirming a successful connection. If the test fails, ensure the Valve Controller shows a green sensor LED, check that the water level covers the bottom third of the sensor, and reset the sensor by holding the magnet on it for five seconds. After removing the magnet, the sensor LEDs should flash three times, and the system will recalibrate, with the Valve Controller's green LED turning solid once complete.
Learn more

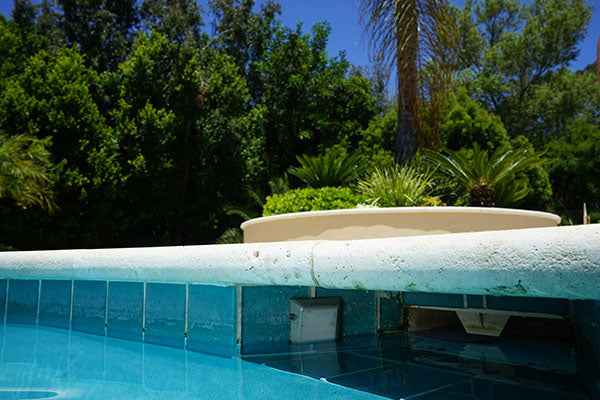

How to Pair the LevelSmart Wireless Autofill System
The pairing process takes 2.5 minutes to complete. The pairing process will ensure that you have good communication between the sensor and the valve controller along with a calibrated water level. You can reach the instructions or follow along with the video below. Before starting make sure the Antenna and antenna tip is connected and mounted. Also, have the sensor near the installation location if not already adhered. Put Valve Control in pairing mode To put the Valve Controller in pairing mode, place the magnet provided on the Valve Controller for more than 16 seconds, then remove it. Once removed, the three LEDs will flash in a scrolling sequence from bottom to top. Put Sensor in Pairing Mode Now that the Valve Controller is in pairing mode it's time to activate the pairing mode for the sensor. Take the magnet to the Sensor and engage the Sensor by placing the magnet on the right side for 5 seconds, then remove it. Once removed, the Sensor LED will flash three times from the top center of the Sensor. Confirm Successful Pairing Check the Valve Controller to observe the pairing process status. The Valve Controller Action LED will flash continuously for a total of two and a half minutes while it confirms the connection with the sensor and calibrates the set level. Once this process is finished the solid green action LED will be on the Valve Controller. If this is not the case, the pairing was unsuccessful and you may have to move the antenna location. Be sure the antenna is not against any metal as that will interfere with the signal. Once you have adjusted the placement restart the pairing process. You can also follow along with this video for the pairing process
Learn more

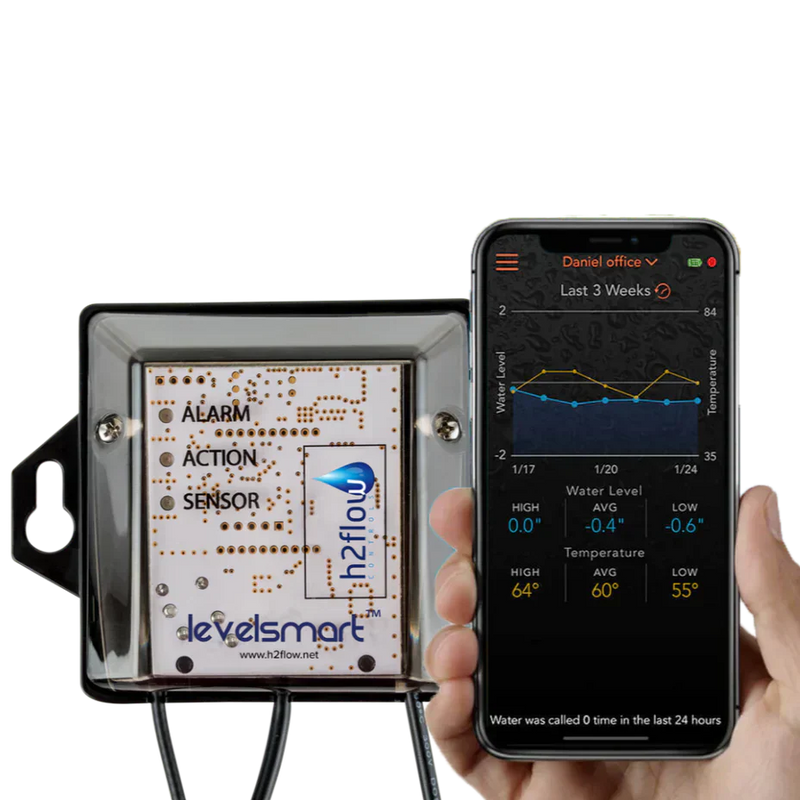

How to setup the online account for LevelSmart Online
When you purchase a LevelSmart system online, you'll need to create an account with Konametrix.com to access and manage your data. After setting up your account, you'll be able to choose a data plan, enter your billing information, and activate your system to start receiving real-time data. This ensures that your LevelSmart device is properly synced and provides you with the necessary insights to monitor your system effectively.
Learn more

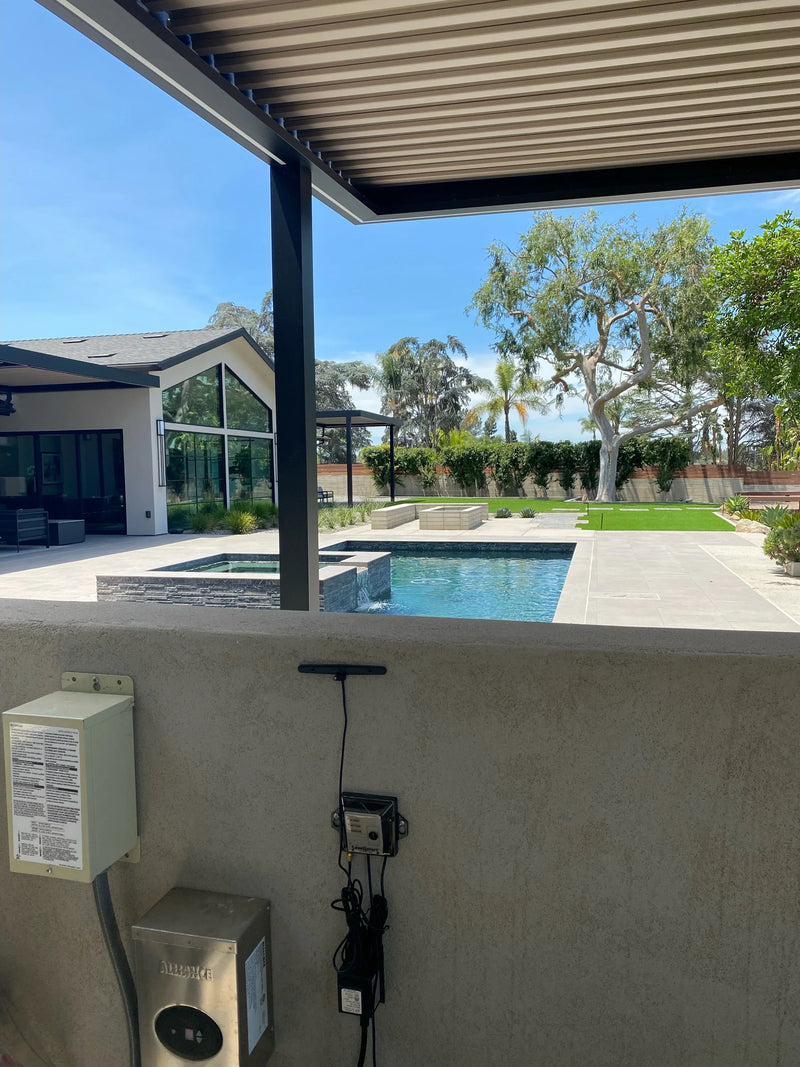

How Do I install the LevelSmart Wireless Autofill?
The LevelSmart Wireless Autofill system from Kona Labs offers a simple, wireless solution for maintaining optimal water levels in various water systems, including pools, spas, ponds, and tanks. Unlike traditional systems that require complex plumbing, LevelSmart’s wireless design makes installation easy and hassle-free. This guide provides step-by-step instructions for installation, calibration, and troubleshooting, helping you get the most out of your system. While most of the installation can be done with basic DIY skills, valve installation should be handled by someone experienced in plumbing.
